• New-Gen WiFi Standard – WiFi 6(802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.
• Ultra-fast WiFi Speed – RT-AX1800HP supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.
• Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
• 5 Gigabit ports – One Gigabit WAN port and four Gigabit LAN ports, 10X faster than 100–Base T Ethernet.
• Protection for Your Home Network – Aiprotection powered by Trend Micro™, blocks internet security threats for all your connected smart devices.

Model Name

• RT-AX1800HP

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

AX technology

• ใช่

Data Rate

• 802.11a: สูงสุด 54 Mbps
• 802.11b: สูงสุด 11 Mbps
• 802.11g: สูงสุด 54 Mbps
• 802.11n: สูงสุด 300 Mbps
• 802.11ac: สูงสุด 867 Mbps
• 802.11ax (2.4 GHz): สูงสุด 574 Mbps
• 802.11ax (5 GHz): สูงสุด 1201 Mbps

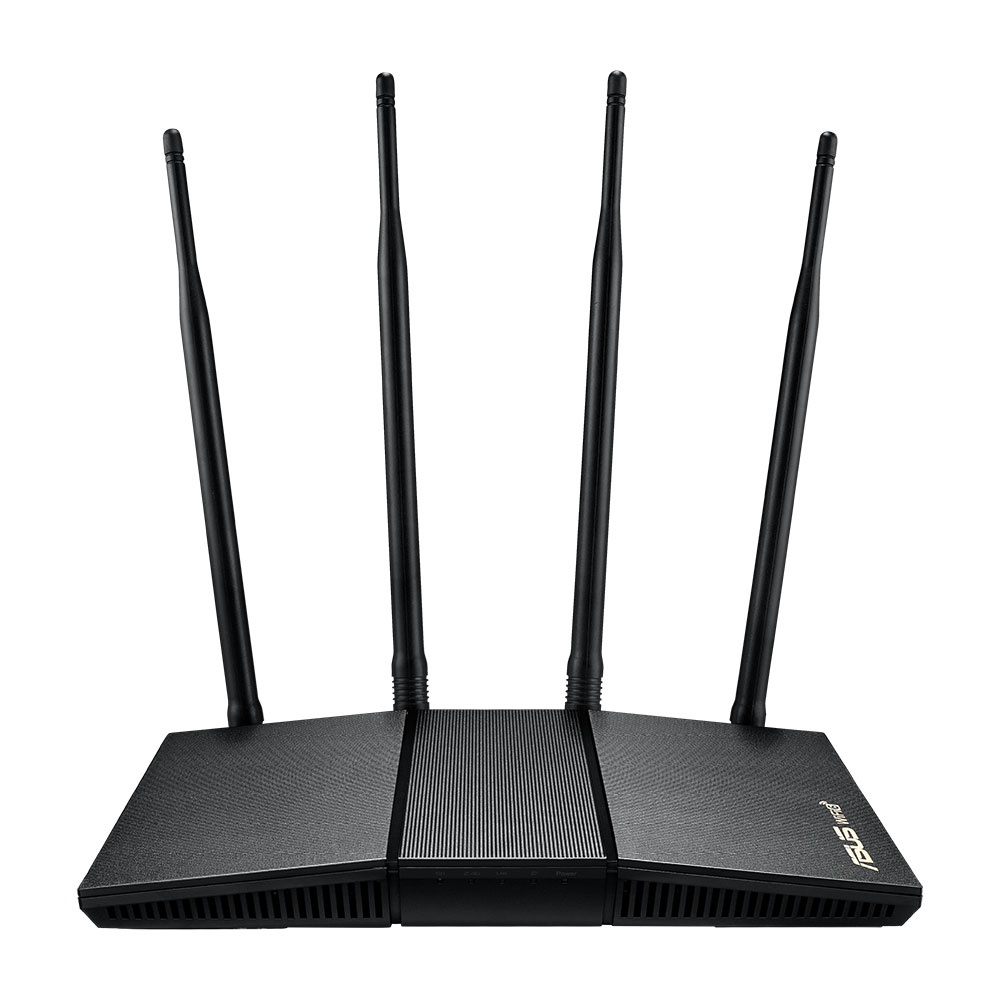

Antenna

• External antenna x 4

Transmit/Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

• Dual-core (4 VPE)

Memory

• 128 MB Flash
• 256 MB RAM

Boosts speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80 MHz bandwidth

Operating Frequency

• 2.4G Hz / 5 GHz

Ports

• RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4

Button

• WPS Button, Reset Button, Power Switch

LED Indicator

• Power x 1
• 2.4G x 1
• 5G x 1
• LAN x 1
• WAN x 1

Power Supply

• AC Input : 100V~240V(50~60Hz)
• DC Output : 12 V with max. 1.5A current

Package content

• RT-AX1800HP
• RJ45 x1
• Adapter x1
• QSG x1
• Warranty Card x1

AiMesh

• ใช่

Router APP

• ใช่

Alexa

• ใช่

AiProtection

• AiProtection Classic
• ใช่

Parental Control

• ใช่
• Traffic Control

Traditional QoS

• ใช่

Wireless

• Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal
• ใช่

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• ใช่

LAN

• ใช่

VPN

• VPN Client OVPN
• VPN Server OVPN
• ใช่

Administration

• Operating mode : Access Point, AiMesh, Repeater, Router
• Operating system : ASUSWRT
• ใช่
