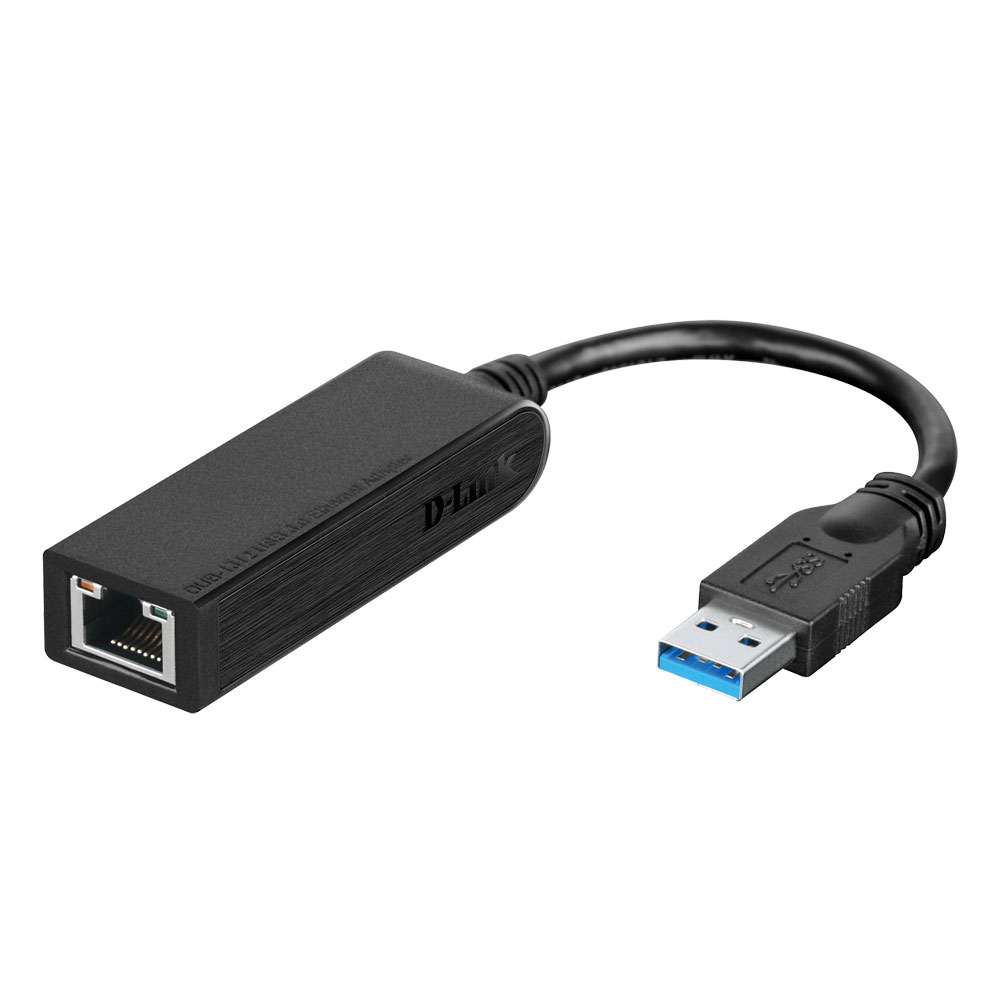

D-LINK DUB-1312 เป็น USB to Gigabit LAN แปลงคอมพิวเตอร์ของคุณ ให้มี Gigabit LAN ใช้ได้ทั้ง Windows และ Mac OS ไม่ว่าคุณจะไม่มี LAN/LAN เสีย/LAN สเป็คต่ำก็ใช้งานได้

Product Highlights

True Gigabit Speed

• Enjoy lightning-fast gigabit speeds with SuperSpeed USB 3.0 support. Fully backwards compatible with previous USB standards.

No Installation Needed1

• Simply connect to an available USB port to enjoy gigabit connectivity in seconds; no further installation necessary.

Energy-saving Power Management

• Dynamic power management reduces power usage during periods of light traffic, when idle , or when Ethernet cable is unplugged.

Features

Gigabit Connectivity

• Achieve transfer speeds of up to 1 Gbps
• Status LEDs for connection status and data transfer speed

USB 3.0 with Simple Installation

• Simply plug in, install the included software, and you’re ready to go1
• No additional hardware installation required, leaving expansion slots free for other uses
• Small and compact design makes it easy to take with you wherever you go
• Fully backwards compatible with previous USB standards

Dynamic Power Management

• Reduces power consumption during times of light traffic, when idle, or when the Ethernet cable is unplugged
• Supports the built-in power-saving features of the USB 3.0 standard
• Especially useful for battery-powered notebook and netbook computers

Technical Specifications

Connectivity

Device Interfaces

• RJ-45 Ethernet Port (10/100/1000 Mbps)
• USB Type A Connector

LEDs

• Speed (orange)
• Link/ACT (green)

Standards

• USB Specification Version 3.0
• USB Specification Version 2.0
• USB Specification Version 1.1
• USB Specification Version 1.0
• OHCI (Open Host Controller Interface)
• EHCI (Enhanced Host Controller Interface)
• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-T, TX, and T4 compatible
• Supports suspended mode and remote wakeup
• Supports full and half duplex in gigabit Ethernet mode

General

Minimum System Requirements

• Operating system: Microsoft Windows 10/8/7/Vista/XP SP3
• Mac OS 10.6 to 10.13
• Linux kernel 2.6.14x or above

Power Management

• Advanced Power Management reduces power usage during idle or light traffic periods

Physical

Dimensions

• 74.4 x 21 x 16 mm

Weight

• 46.4 grams

ดาวน์โหลด D-LINK DUB-1312 Datasheet
