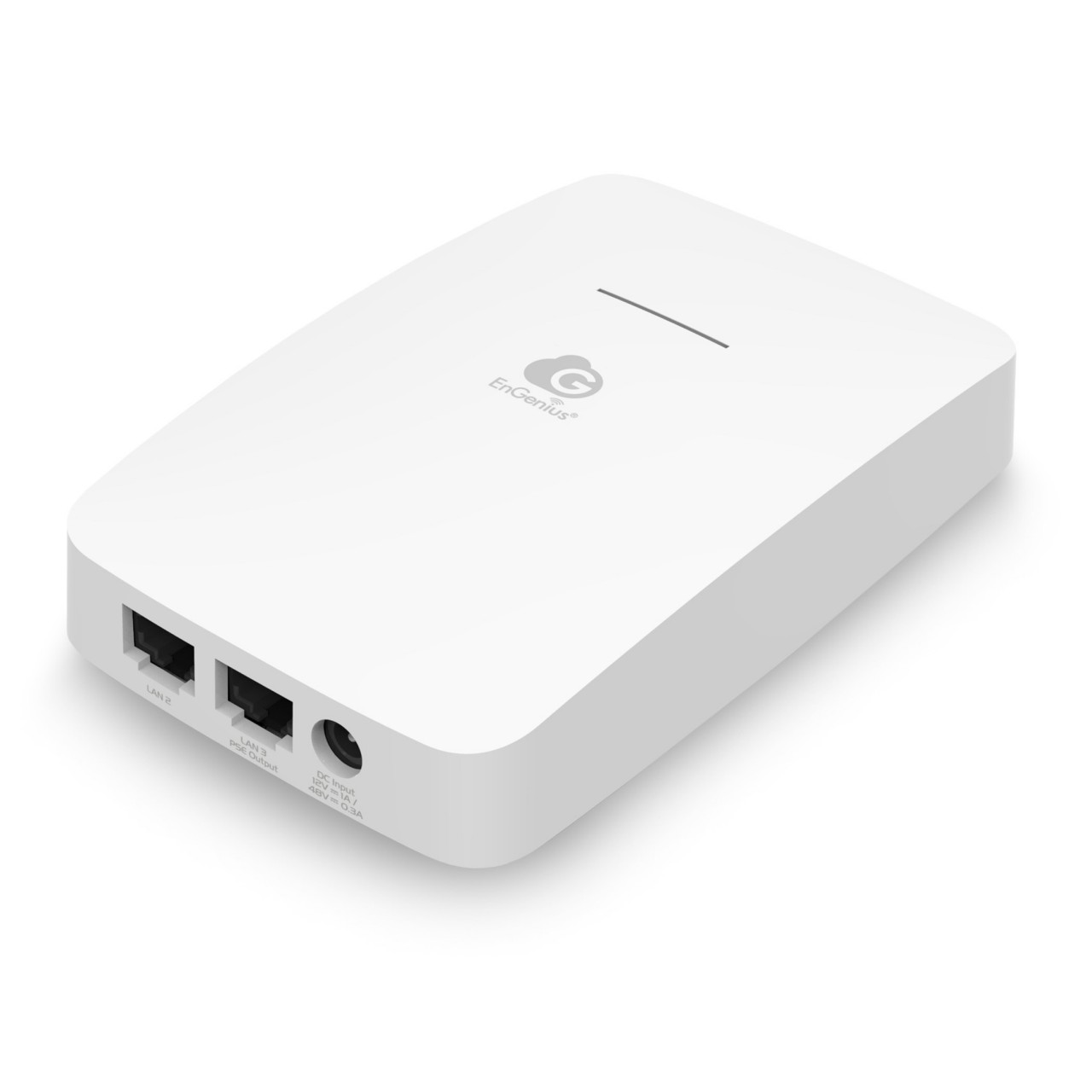

EnGenius ECW215 Wi-Fi 6 Cloud-Managed Wall-Plate Access Point

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
  • รูปภาพ 5
  • รูปภาพ 6
ราคาเต็ม:
7,400.00฿
ราคารวม:
6,900.00฿ (คุณประหยัดเงิน 500.00฿)
รหัสสินค้า:
ECW215
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

EnGenius Cloud Managed ECW215 Wi-Fi 6 dual-band 2x2:2 wall-plate access point with built-in 2-port gigabit switch, with port 2 supporting PoE power transfer to other PoE devices, provides exceptional in-room wired and wireless connectivity for superior entertainment in hotel rooms, student housing, assisted living, senior living, multi-tenant dwellings, and classrooms.

  • Dual-band 802.11ax 2x2 supports up-to 1,200 Mbps (5 GHz) & 574 Mbps in 2.4-GHz
  • Sleek, low-profile design for in-room Wi-Fi & wired connectivity
  • On-board 2-port switch offers port-based 802.1Q VLAN support
  • LAN1 & LAN2 support 802.3af/at PoE input for flexible installation up-to 328 feet
  • Connect & power VoIP phones or other PoE devices with PSE Support
  • SmartCasting to personalize in-room media with mobile device streaming to TV’s
  • Extend SSID settings to LAN ports & provide captive portal, splash page, and advanced security
  • Mesh wireless support simplifies setup, optimizes signals & self-heals

Technical Specifications

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11b/g/n/ac

Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.0GHz

Antenna
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

Physical Interface
1 x 10/100/1000 Mbps Ethernet Uplink Port (back plate)
2 x 10/100/1000 Mbps Ethernet Switched Ports (client ports)
- Port 3 PoE PSE (ECW215 requires 802.3at power source)
1 x Reset Button
1 x DC Jack

LED Indicators
1 x Multi- color LED for following behavior
- Power up
- Cloud connecting
- Disconnected

Power Source
Power-over-Ethernet: 802.3af/at Input
- PoE Output w/ 802.3at Input
IEEE 802.11e Compliant Source
DC Jack: 12V/1.5A 48V

Maximum Power Consumption
14.2W



Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
AP, AP Mesh, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 20 dBm on 2.4 GHz
Up to 20 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4GHz and 5GHz radio.

MU-MIMO
Two (2) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.

Two (2) spatial streams multi-user (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK



Management

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation



Environmental & Physical

Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-30 ºC~80 ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less



Device Dimensions & Weights

ECW215 Device
Weight: .80 lbs. (.363 Kg)
Length: 5.5” (140 mm)
Width: 3.5” (90 mm)
Height: 1.6” (40 mm)

Packaging
Weight: .86 lbs. (.390 Kg)
Length: 7.375” (187.3 mm)
Width: 5.375” (136.5 mm)
Height: 2.75” (69.9 mm)

Package Contents
1 - ECW215 Cloud Managed Indoor Access Point
1 - Ceiling and Wall Mount Screw Kits
2 - Junction-plates (tall/short)
1 - Quick Installation Guide


การรับประกัน

ประกันศูนย์ไทย 3 ปี
