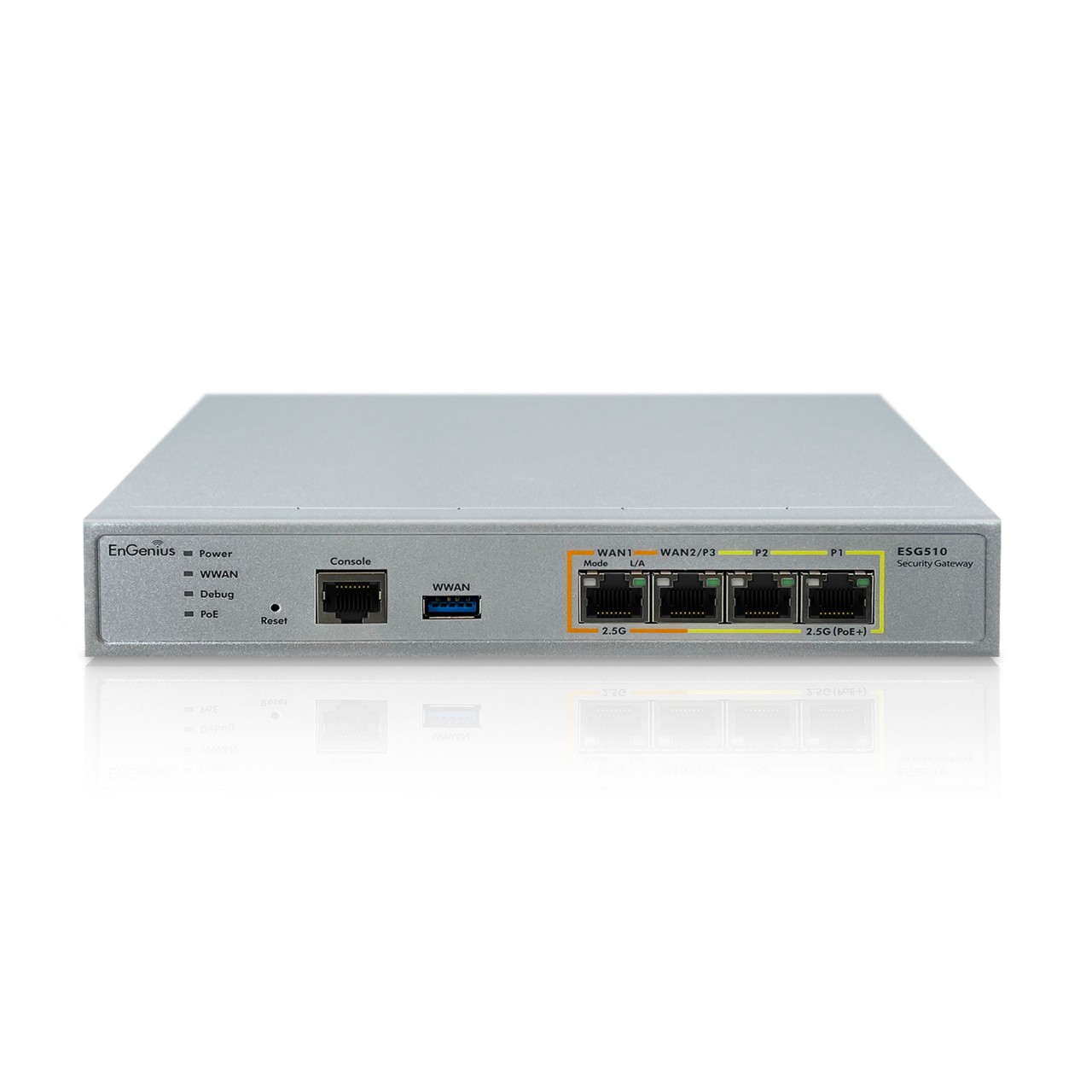

The EnGenius Cloud Managed ESG510 1.6GHz Quad-Core SD-WAN Security Gateway with Dual-WAN 2.5GbE, Dual-LAN 2.5GbE, cellular failover, stateful firewall, and site-to-site and client VPN delivers more simplicity and security to businesses by providing the IT team with effortless setup, enterprise-level security, and an end-to-end network solution.

• Simple, unified cloud management for any size business
• Intuitive and centralized device visibility from anywhere
• Quad core 1.6GHz processor for greater speed and power
• Dual 2.5GbE WAN and Dual 2.5GbE LAN for maximum performance
• 2.5GbE PoE+ to power up a Wi-Fi 6E AP, IP camera or IP phone
• Built-in load balancing and safeguards with dual-WAN and cellular failover
• Enhance security with a high-throughput firewall
• Quick VPN and VLAN setup for easy configurations
• Fast Site-to-site VPN and Client VPN for secure connections
• Self-healing AUTO VPN to minimize disruption
• Passthrough mode for easy integration into existing networks
• TPM chipset to enhance the security level of the gateway
• Touchless system maintenance and automatic updates
• No licensing or subscription fees needed

Technical Specifications

CPU Processor
Quad-Core

Operating Frequency
1.6GHz

Memory
4GB

Storage
8GB
Network Ports (Copper Ports)
4 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports

Console Port
1 x 10/100/1000, RJ-45 Ethernet port

PoE+ Capable Port
1 (802.3af/at) LAN (P1)

Mounting Method
Wall mount

USB Interface
1 x USB 3.0

Security Chip
TPM

Performance & Capacity

Firewall (SPI Throughput)
4G

VPN Throughput
970 Mbps

Max. TCP Concurrent Sessions
1,000,000

Max. Concurrent VPN Tunnels
200

Max. VLAN
96

Firewall

Firewall Features
Stateful Packet Inspection
Policy Rules
Port Forwarding
1:1 NAT
Allow Inbound Services

VPN

Site-to-Site VPN
Mesh VPN/Hub-and-Spoke

Encryption
DES, 3DES, AES (256-bit)

Authentication
MD5, SHA1, SHA2 (512-bit)

Key Management
IKEv1 (x-auth, mode-config)
IKEv2 (EAP, configuration payload)

VPN Features
Site-to-Site VPN
Client VPN
Policy-based VPN
IPSec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal
