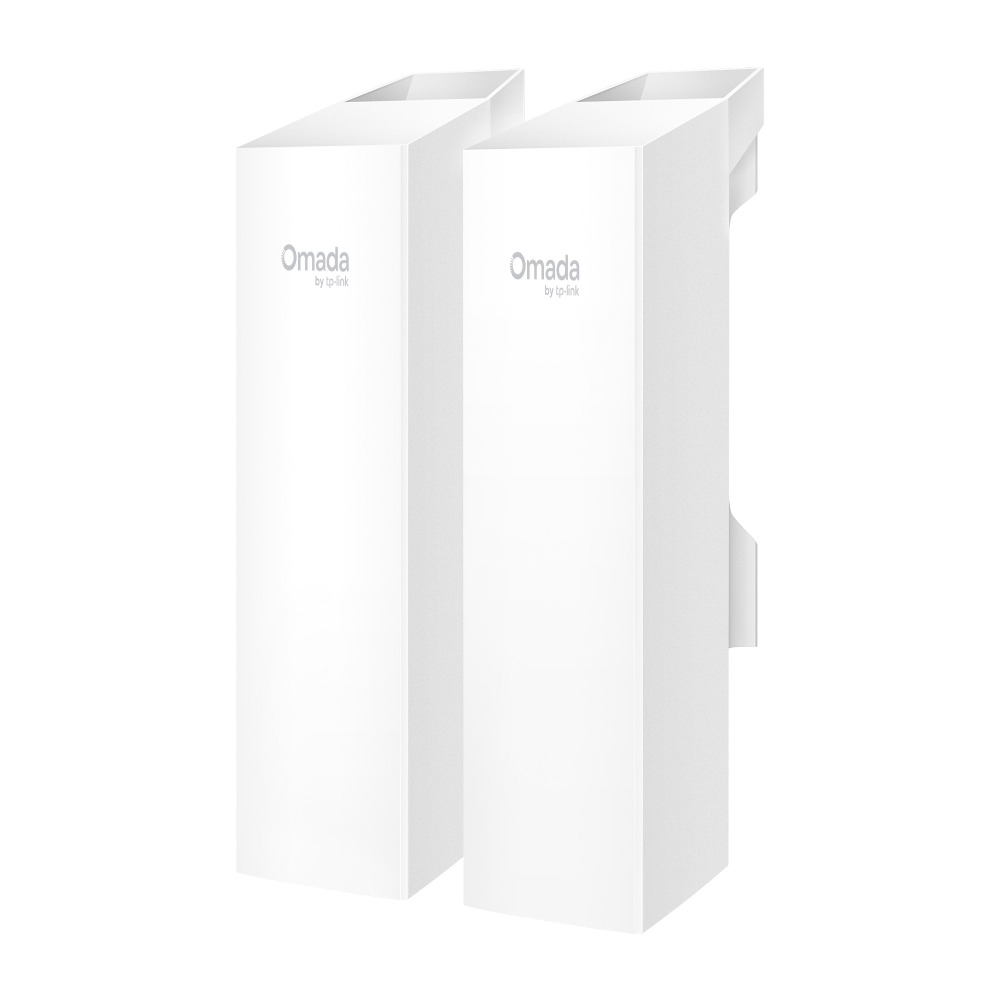

TP-LINK EAP100-Bridge KIT ชุดอุปกรณ์เชื่อมต่อเครือข่ายไร้สายระยะไกลสูงสุด 500 เมตร ด้วยเทคโนโลยี Omada SmartBridging ติดตั้งง่ายแบบ Plug-and-Play แค่เสียบปลั๊กก็พร้อมใช้งานทันที ตัวเครื่องทนทานมาตรฐาน IP65 รองรับ PoE เหมาะสำหรับเชื่อมต่อกล้องวงจรปิดหรืออุปกรณ์เครือข่ายระหว่างอาคาร
| HARDWARE FEATURES | |
| Interface | 3x 10/100 Mbps Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE |
| Max. Power Consumption | 4.8 W |
| Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas 2.4 GHz: 8.0 dBi Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole and wall mounting ( Pole accessories included) |
| WIRELESS FEATURES | |
| Coverage | 500 m (0.31 mi)* |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | • MIMO: 2.4G 2 × 2 MIMO • Mesh • Beamforming • Channel: 1-11 (US); 1-13 (EU) • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Guest Network • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption |
| Transmission Power | • CE: <20dBm (2.4 GHz, EIRP); • FCC: <22dBm (2.4 GHz) |
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada App |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | • EAP100-Bridge KIT • Installation Guide • Pole Mounting Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
