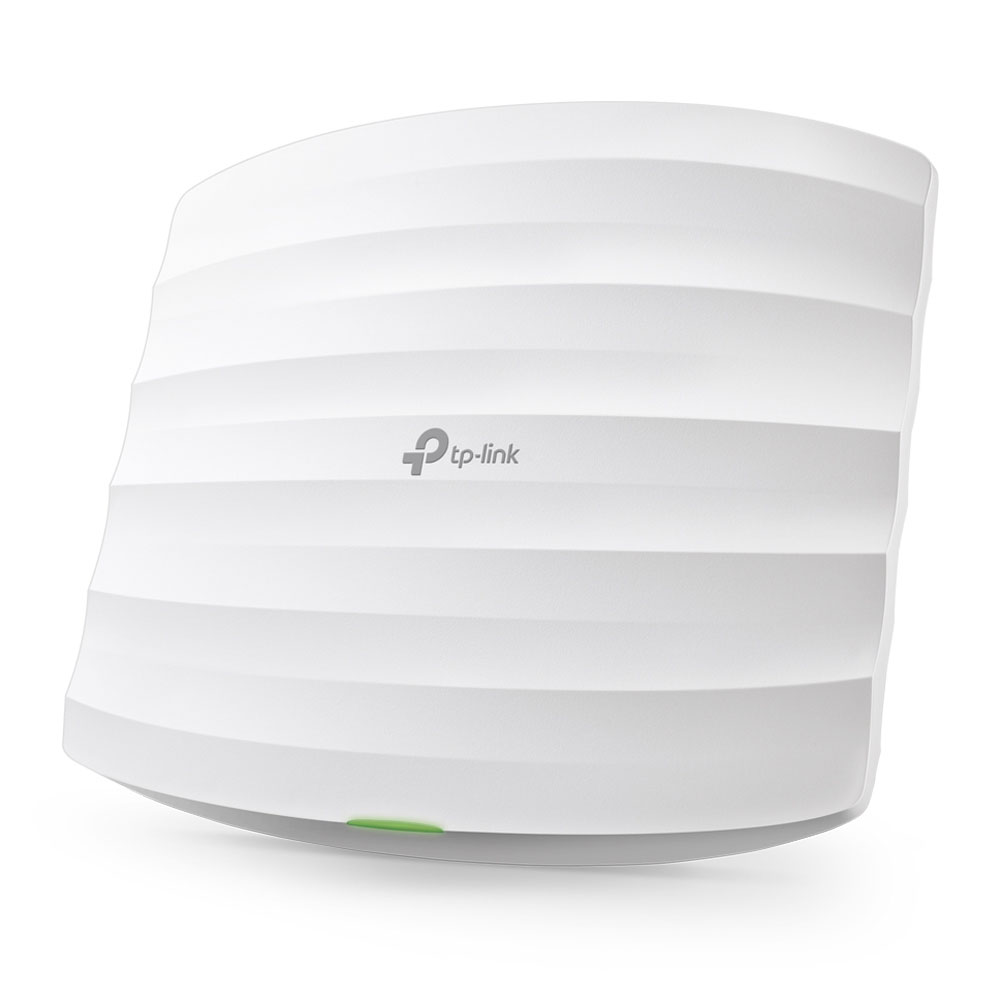

TP-LINK EAP110 300Mbps Wireless N Ceiling Mount Access Point

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
ราคาเต็ม:
990.00฿
ราคารวม:
850.00฿ (คุณประหยัดเงิน 140.00฿)
รหัสสินค้า:
EAP110
ยี่ห้อ:
TP-LINK
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า

  • Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
  • Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
  • Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
  • Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
  • Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
HARDWARE FEATURES
Interface 1× Fast Ethernet (RJ-45) Port (Support Passive PoE)
Button Reset
Power Supply 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 2.8 W
Dimensions ( W x D x H ) 7.5×6.7×1.2 in (189.5×170.5×29.7mm)
Antenna Type Internal 2× 4 dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity 100+**
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4–2.4835 GHz
Signal Rate • 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)
Reception Sensitivity • 300M: -71 dBm@10% PER
• 150M: -75 dBm@10% PER
• 54M: -78 dBm@10% PER
• 11M: -93 dBm@8% PER
• 6M: -92 dBm@10% PER
• 1M: -96 dBm@8% PER
Wireless Functions • Multiple SSIDs （Up to 8 SSIDs）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power • CE:
≤19 dBm (EIRP)
• FCC:
≤21 dBm
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents • 300Mbps Wireless N Ceiling Mount Access Point EAP110
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

การรับประกัน

ประกันศูนย์ Lifetime
