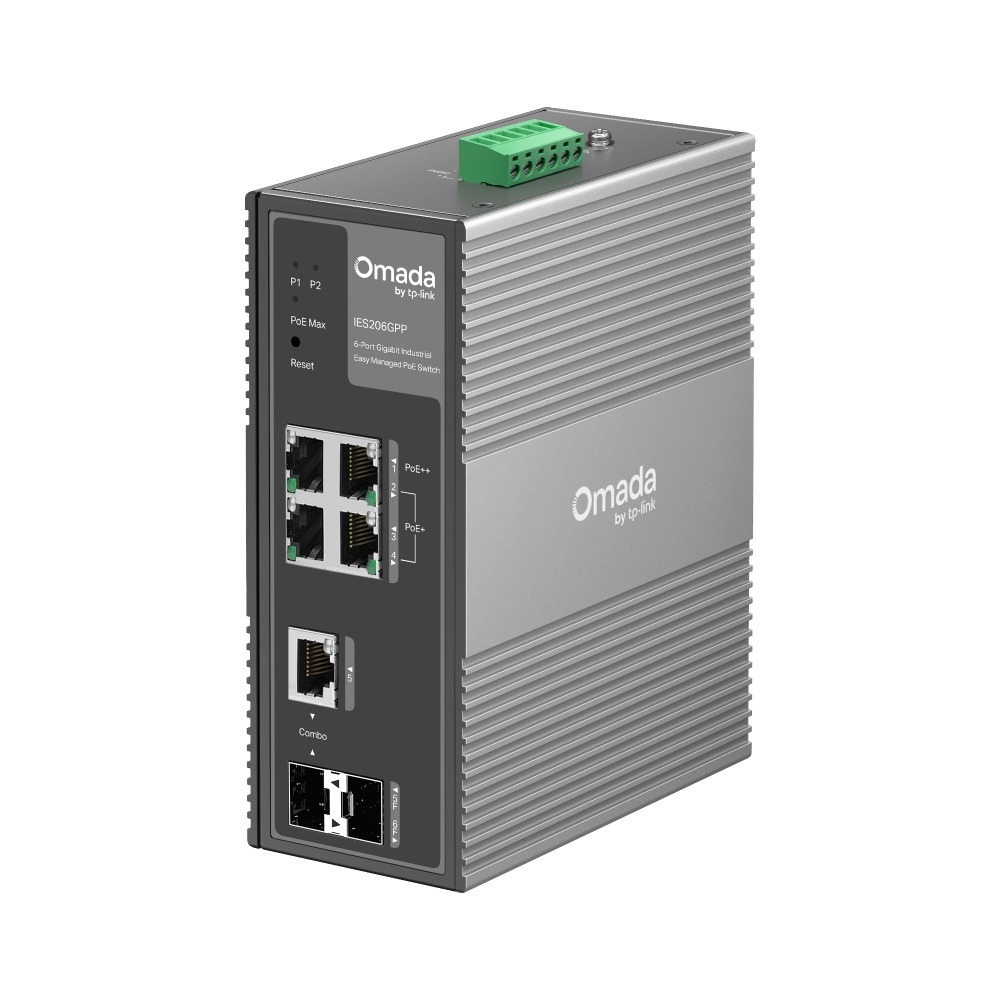

TP-LINK IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
  • รูปภาพ 5
ราคา:
สินค้าโปรเจค ทัก line id : @totalit เพื่อขอราคา
รหัสสินค้า:
IES206GPP
ยี่ห้อ:


คุณสมบัติของสินค้า

  • 4× พอร์ต RJ45 Gigabit (1× PoE++, 3× PoE+)
  • 1× พอร์ต Combo RJ45/SFP Gigabit, 1× พอร์ต SFP Gigabit
  • งบพลังงานรวม 120W* โดยรองรับสูงสุด 60W สำหรับพอร์ต PoE++
  • ออกแบบระดับอุตสาหกรรม: อุณหภูมิใช้งาน -40~75°C, ป้องกันฟ้าผ่า 6kV และรองรับไฟฟ้าสำรองแบบ 1+1
  • ฟีเจอร์ครบครัน: ระยะ PoE สูงสุดถึง 820 ฟุต (250 เมตร)**, VLAN, QoS และ STP/RSTP
  • จัดการผ่านระบบคลาวด์ได้จากเว็บหรือแอป Omada
  • ตัวเครื่องอะลูมิเนียมมาตรฐาน IP40 แข็งแรง ติดตั้งได้ทั้งแบบราง DIN และยึดผนัง
HARDWARE FEATURES
Interface • 1× 10/100/1000 Mbps PoE++ RJ45 Ports
• 3× 10/100/1000 Mbps PoE+ RJ45 Ports
• 1× Gigabit SFP/RJ45 Combo Slot
• 1× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • DIN-rail mounting
• Wall mounting
Physical Security Lock
Power Supply 12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45) • Standard: 802.3af/at/bt compliant
• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port
• PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port
• PoE Budget:
- 60W (Input: 12V / 7.0A - 21V / 3.5A))
- 120W (Input: 21V / 6.5A - 57V / 2.3A)
Dimensions ( W x D x H ) 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection • ±6 kV in common mode for Ethernet ports
• ±4 kV in common mode for DC power input ports
PERFORMANCE
Switching Capacity 12 Gbps
Packet Forwarding Rate 8.93 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rate Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features • Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Digital Diagnostic Monitoring (DDM)
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
OTHERS
Certification FCC, CE, RoHS
Package Content • IES206GPP
• DIN-Rail Mounting Bracket
• Wall-Mounting Plates
• Installation Guide
Environment • Operating Temperature: -40℃~75℃ (-40℉~167℉)
• Storage Temperature: -40℃~85℃ (-40℉~185℉)
• Operating Humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
