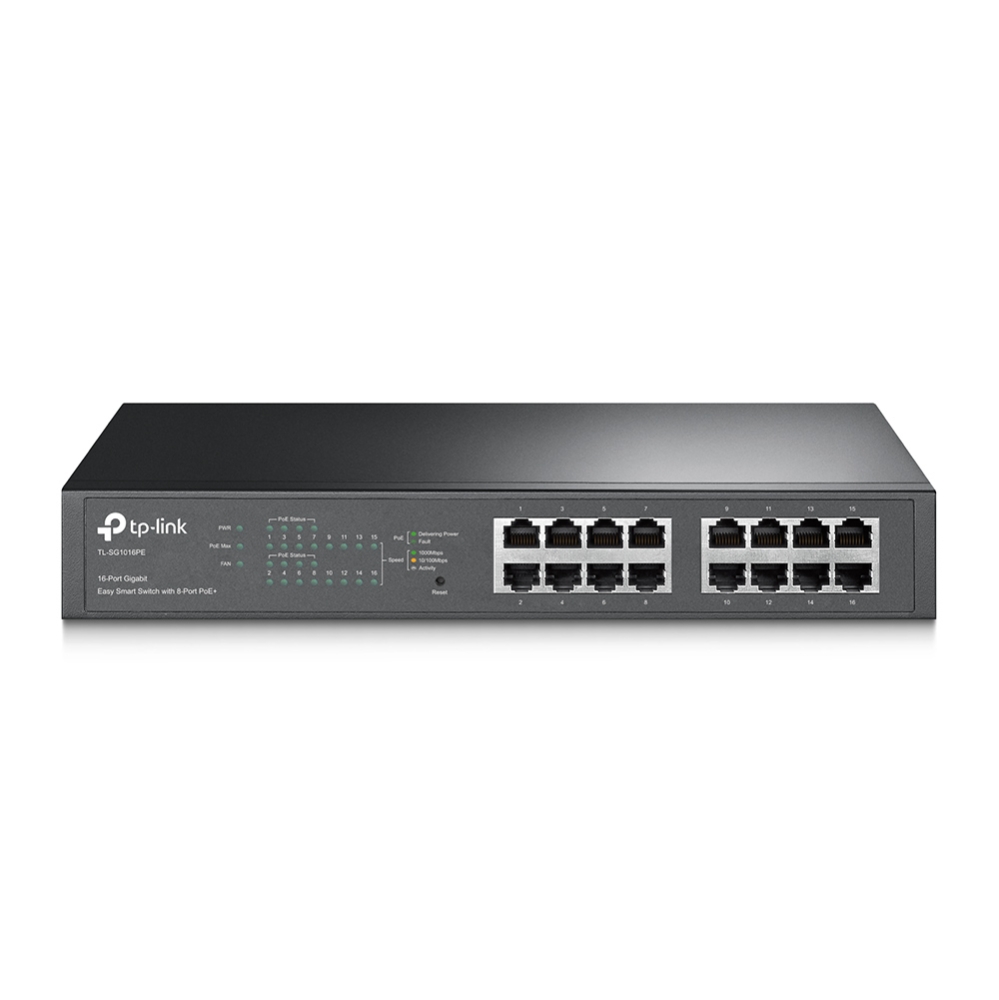

TP-LINK TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
ราคาเต็ม:
4,990.00฿
ราคารวม:
4,150.00฿ (คุณประหยัดเงิน 840.00฿)
รหัสสินค้า:
TL-SG1016PE
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

  • 16× 10/100/1000Mbps RJ45 ports
  • Equipped with 8× PoE+ supported ports to transfer data and power over a single cable
  • With a total PoE power budget of 150 W,* up to 30 W per port
  • Works with IEEE 802.3af/at compliant devices
  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16× 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Physical Security Lock Yes
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1 to Port 8
PoE Power Budget: 150 W
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Mounting Rack Mountable/ Desktop
Max Power Consumption 8.8 W (220 V/50 Hz with no PD connected)
172.26 W (220 V/50 Hz with 150 W PD connected)
Max Heat Dissipation 30.01 BTU/h (220 V/50 Hz with no PD connected)
587.41 BTU/h (220 V/50 Hz with 150 W PD connected)
PERFORMANCE
Switching Capacity 32 Gbps
Packet Forwarding Rate 23.8 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 10 KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE PoE Management
Extend Mode
PoE Auto Recovery
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% non-condensing
Storage Humidity: 5–90% non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
