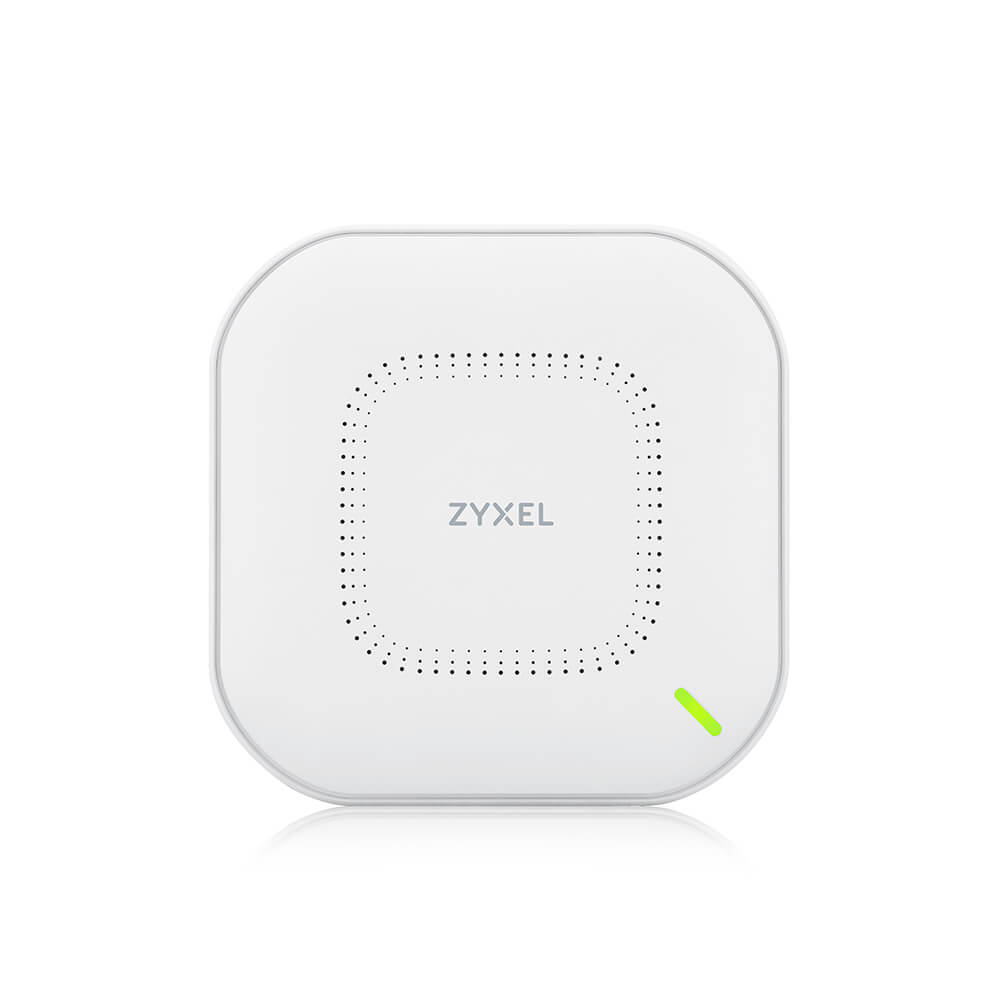

ZYXEL WAX510D 802.11ax (WiFi 6) Dual-Radio Unified Access Point

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
ราคา:
7,990.00฿
รหัสสินค้า:
WAX510D
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า


WAX510D
Product name
Description 802.11ax (WiFi 6) Dual-Radio Unified Access Point
Wireless
Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575Mbps
5GHz: 1200Mbps
Frequency band 2.4 GHz (IEEE 802.11 b/g/n)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power*1
(limited by local regulatory requirements)
US (2.4GHz/5GHz): 23/26dBm
EU (2.4GHz/5GHz): 20/25dBm
RF Design
Antenna type 2x2 dual-optimized antenna
Antenna gain 2.4GHz: Peak Gain 5dBi
5GHz: Peak Gain 6dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering Yes
WDS (Standalone)*2 Yes (V6.10)
ZyMesh (AP Controller )*2 Yes (V6.10)
Smart mesh*2 Yes (V6.10)
Fast roaming Pre-authentication, PMK caching and 802.11r
DCS (Auto Channel) Yes
Load balancing Yes
Security
Wireless Security
  • WPA
  • WPA-PSK
  • WPA-Enterprise (WPA/WPA2/WPA3)
Access management
  • L2-isolation
  • MAC filtering
  • Rogue AP detection
  • EAP
  • IEEE 802.1X
  • RADIUS authentication
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating mode
  • Nebula Cloud managed
  • Controller-managed
  • Standalone
ZON Utility
  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device factory reset
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
    • One-click quick association with Zyxel AP Configurator (ZAC)
Zyxel AP Configurator
  • Batch AP configuration
  • Batch AP firmware upgrade
  • Batch AP profile backup
Zyxel Wireless Optimizer
  • WiFi AP planning
  • WiFi coverage detection
  • Wireless health management
Web UI/ CLI Yes
SNMP Yes
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
180 x 180 x 39 / 7.09 x 7.09 x 1.54
Weight (g/lb.)
453g / 1
Packing Dimensions (WxDxH)(mm/in.)
229 x 216 x 64 / 9.02 x 8.5 x 2.52
Weight (g/lb.)
770g / 1.7
Included accessories
  • Mount plate
  • Mounting screws
MTBF (hr) 635,837
Physical Interfaces
Ethernet port
  • 1 x 10/100/1000M LAN
Power
  • PoE (802.3)at: power draw 17 W
  • DC input : 12 VDC 1.5A
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)
Storage Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
  • FCC Part 15C
  • FCC Part 15E
  • ETSI EN 300 328
  • EN 301 893
  • LP0002
EMC
  • FCC Part 15B
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • EN61000-3-2/-3
  • EN60601-1-2
  • BSMI CNS13438
Safety
  • Safety EN 60950-1
  • IEC 60950-1
  • BSMI CNS14336-1

All specifications are subject to change without notice.

  1. Conducted typical transmit output power excludes antenna gain. For total (EIRP) transmit power, add antenna gain.
  2. WDS, ZyMesh, Smart Mesh and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another.
