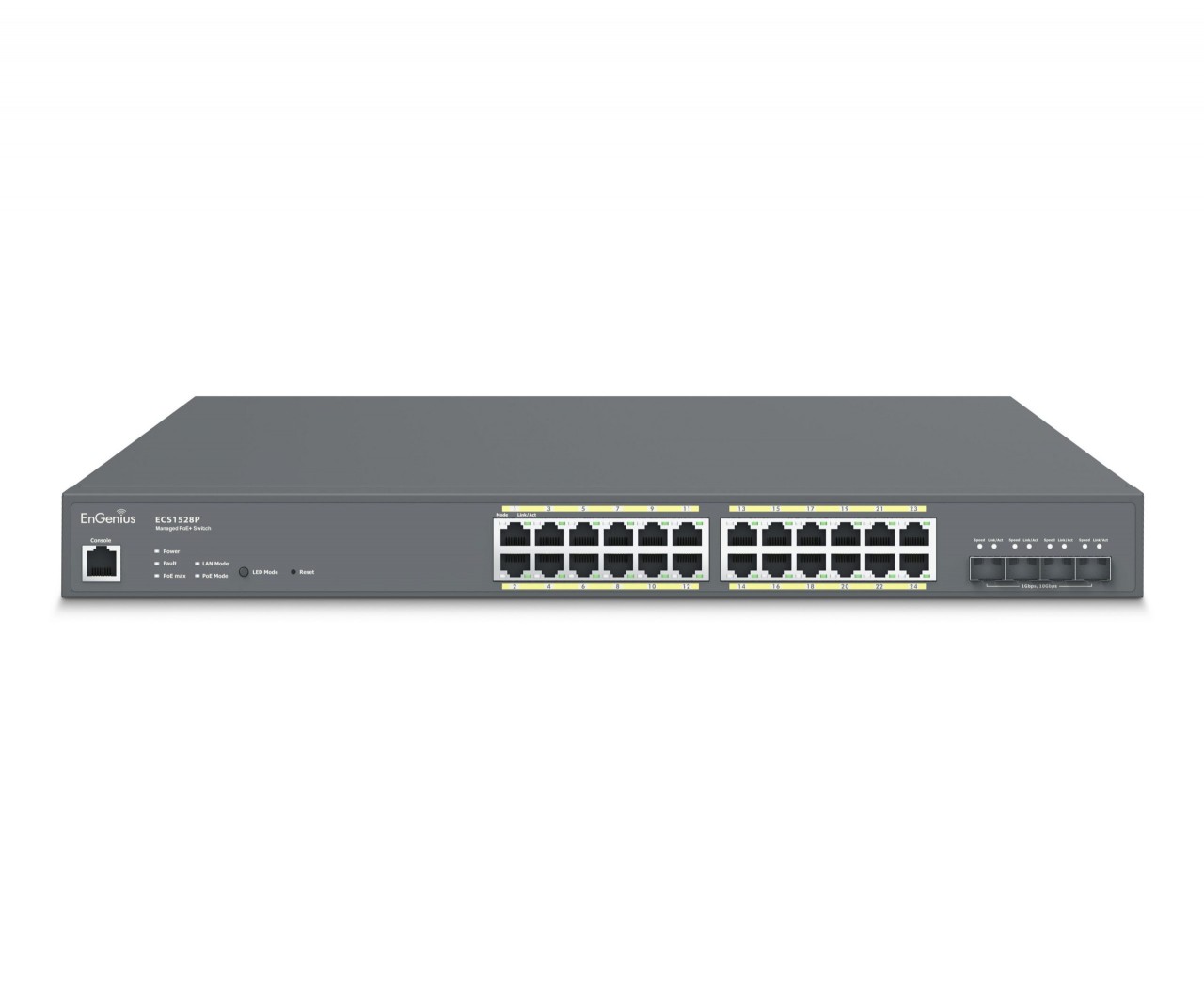

EnGenius ECS1528P Cloud Managed 24-Port Gigabit PoE+ Switch with 4 SFP+ Ports

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
ราคาเต็ม:
25,900.00฿
ราคารวม:
20,930.00฿ (คุณประหยัดเงิน 4,970.00฿)
รหัสสินค้า:
ECS1528P
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

EnGenius Cloud ECS1528P is a 24-Port Gigabit PoE+ Layer 2+ Switch with a 240W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

  • 24 10/100/1000 Base-T GbE Ports
  • Full-Featured Layer 2+ Switching
  • 802.3 at/af PoE+ Ready on All Ports with 240W PoE budget
  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
  • PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
  • PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
  • Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting
  • Hybrid Switch Supports Multiple Management Options

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
24 10/100/1000 Mbps Ports + 4x SFP+ Ports

Switching Capacity
128Gbps

SDRAM
512MB

Flash Memory
128MB

PoE+ Capable Ports
1-24

Total PoE Budget
240W

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)



Software Features (L3 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries



Software Features (L2 Features)

MAC Address Table
16K

Jumbo Frame
10K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries

Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL



Web Graphical User Interface(GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate
Certificate/Key Import

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree



Environmental & Physical

Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)
Operating: 5% - 95%



Device Dimensions & Weights

Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

ECS1528P Device:
Weight: 6.63 Ibs. (3.01 kg)
Width: 17.32” (440 mm)
Depth: 10.23” (260 mm)
Height: 1.73” (44 mm)

Packaging
Weight: 8.4 lbs. (3.81 kg)
Width: 20.94” (532 mm)
Depth: 13.62” (346 mm)
Height: 3.97” (101 mm)


การรับประกัน

ประกันศูนย์ไทย 5 ปี
