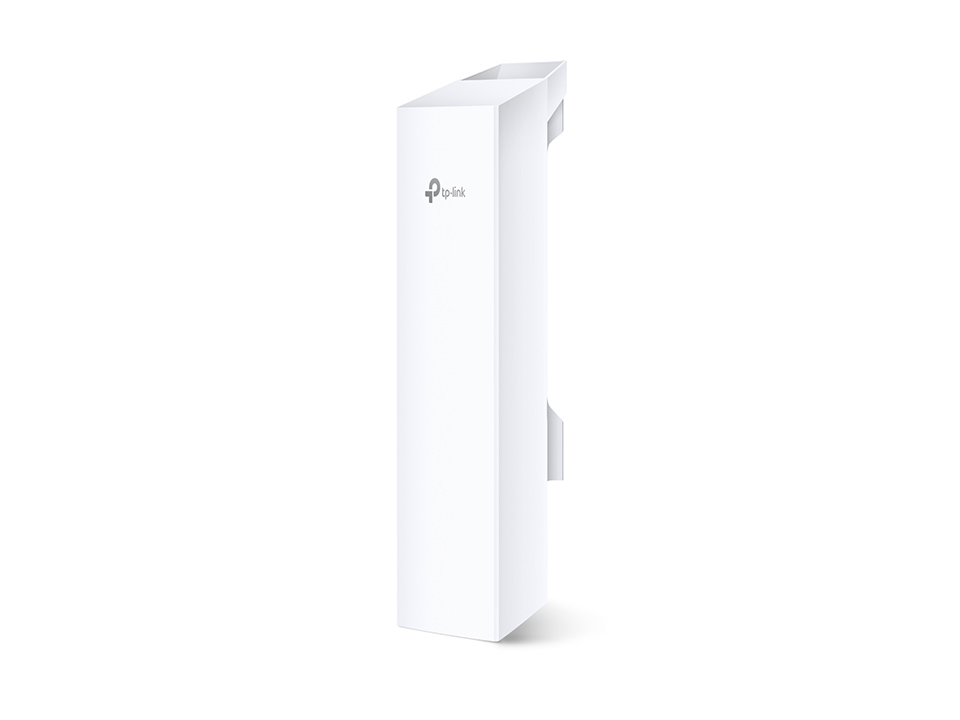

TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
ราคาเต็ม:
2,490.00฿
ราคารวม:
2,040.00฿ (คุณประหยัดเงิน 450.00฿)
รหัสสินค้า:
CPE220
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

buy at shopee

TP-LINK CPE220 เป็น Outdoor Access Point กำลังส่งสูง ส่งสัญญาณได้ไกลกว่ารุ่น CPE210 มี WAN 1 ช่อง LAN 1 ช่อง รองรับ Wireless N 300Mbps มี PoE Adapter ให้ในกล่อง

  • Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 30dBm/1000mw
  • System-level optimizations for more than 13km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
HARDWARE FEATURES
Processor Qualcomm Atheros 560MHz CPU, MIPS 24Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm)
Antenna Type Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.
Transmission Power 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8×43.9×31.9 mm
Interfaces 1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green

Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency >80%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, RoHS, IPX5
Package Contents Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user
experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

การรับประกัน

ประกันศูนย์ 3 ปี
