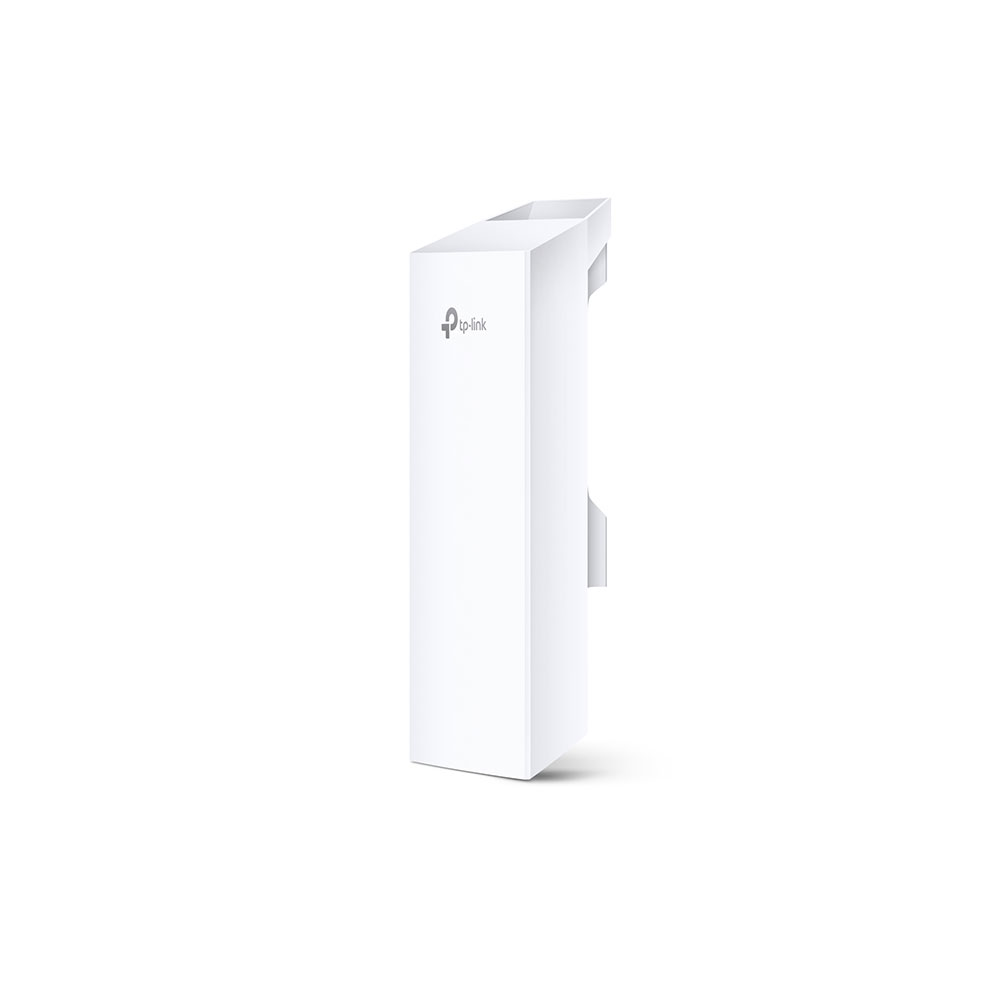

TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor CPE

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
ราคาเต็ม:
2,190.00฿
ราคารวม:
1,530.00฿ (คุณประหยัดเงิน 660.00฿)
รหัสสินค้า:
CPE510
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

buy at shopee

  • สายอากาศภายใน MIMO ขนาด 13 dBi แบบสองแกน(แนวตั้งและแนวนอน) กระจายสัญญาณไปในทิศทางเดียว
  • ปรับกำลังส่งได้ตั้งแต่ 0 ถึง 27dBm / 500mw
  • เพิ่มประสิทธิภาพของการส่งสัญญาณไร้สายระยะไกลได้ไกลถึง 15 กิโลเมตร
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) เทคโนโลยีที่ช่วยเพิ่มประสิทธิภาพของผลิตภัณฑ์ในการส่งผ่าน สมรรถภาพในการทำงาน ประสิทธิภาพในการทำงานแฝง การใช้แอพพลิเคชั่น PTMP
  • ระบบการจัดการผ่านศูนย์กลาง - Pharos Control
  • โหมดการทำงานที่หลากหลาย AP / Client / Repeater / AP Router / AP Client Router (WISP)
  • Passive PoE Adapter รองรับการใช้งานเทคโนโลยีเพื่อส่งกระแสไฟฟ้าผ่านสาย UTP เพื่อจ่ายให้กับอุปกรณ์เครือข่ายได้ถึง 60 เมตร (200 ฟุต) ให้อุปกรณ์สามารถตั้งค่าได้จากระยะไกล
HARDWARE FEATURES
Processor Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 224 x 79 x 60 mm
Antenna Type Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power 23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H) 110*57*33.5mm
Interfaces 1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs 0~0.8A: Green
0.8A~1.0A: Red
Input 100-240VAC, 50/60Hz
Input Voltage 100VA~240VAC @ 50Hz~60Hz
Input Current 0.8A Max @ 100VAC
Output 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Output Voltage 24VDC(+4,5pins; -7,8pins)
Efficiency >80%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, RoHS, IPX5
Package Contents Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

การรับประกัน

ประกันศูนย์ 3 ปี
