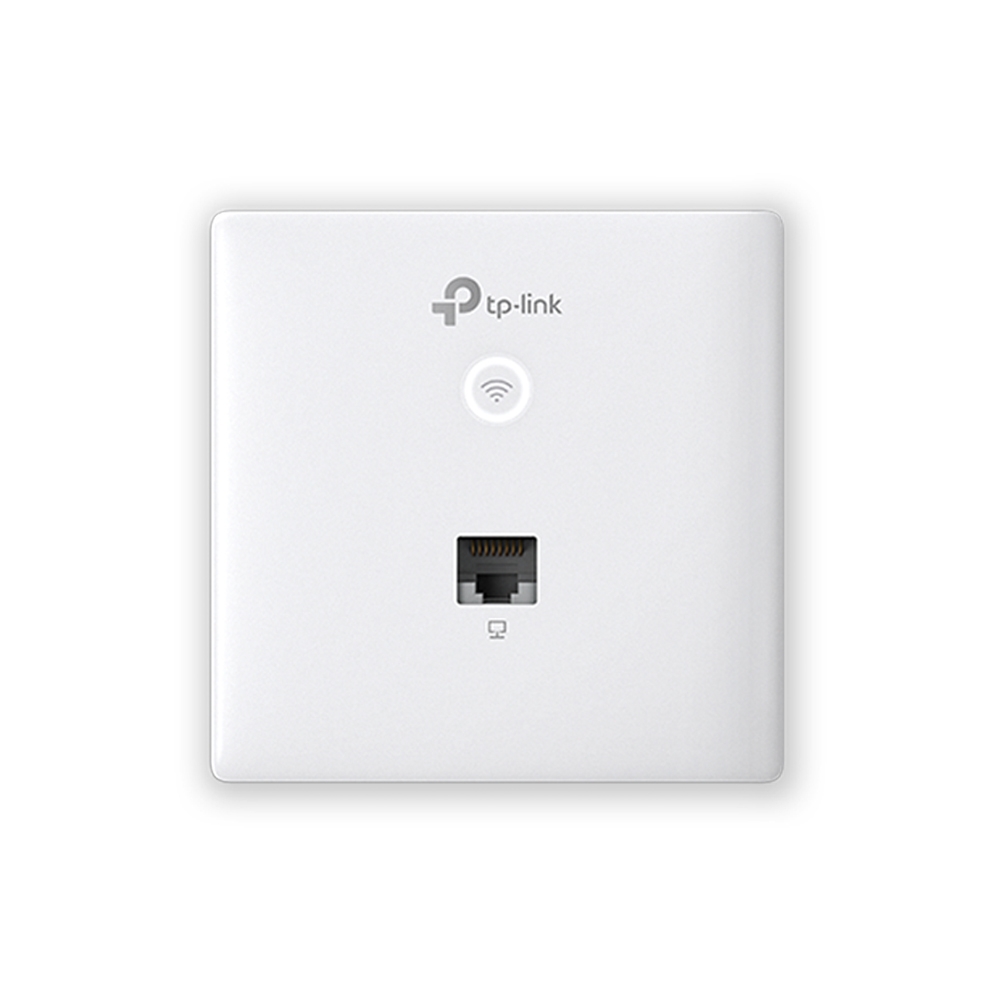

TP-LINK EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
ราคาเต็ม:
1,790.00฿
ราคารวม:
1,440.00฿ (คุณประหยัดเงิน 350.00฿)
รหัสสินค้า:
EAP230-Wall
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
  • Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
  • Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
  • Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
  • Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.§
HARDWARE FEATURES
Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port
Physical Security Lock No
Button LED/Wi-Fi Button, RESET
Power Supply 802.3af/802.3at PoE
Power Consumption 7 W
Dimensions ( W x D x H ) 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 3.6 dBi
Mounting Wall Plate Mounting
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Client Capacity 200+*
Wireless Standards IEEE 802.11n/g/b/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• MU-MIMO
• Band Steering
• Beamforming
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power CE:
• ≤20 dBm (2.4 GHz, EIRP)
• ≤23 dBm (5 GHz, EIRP)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, RoHS
Package Contents • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
• Installation Guide
• Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
