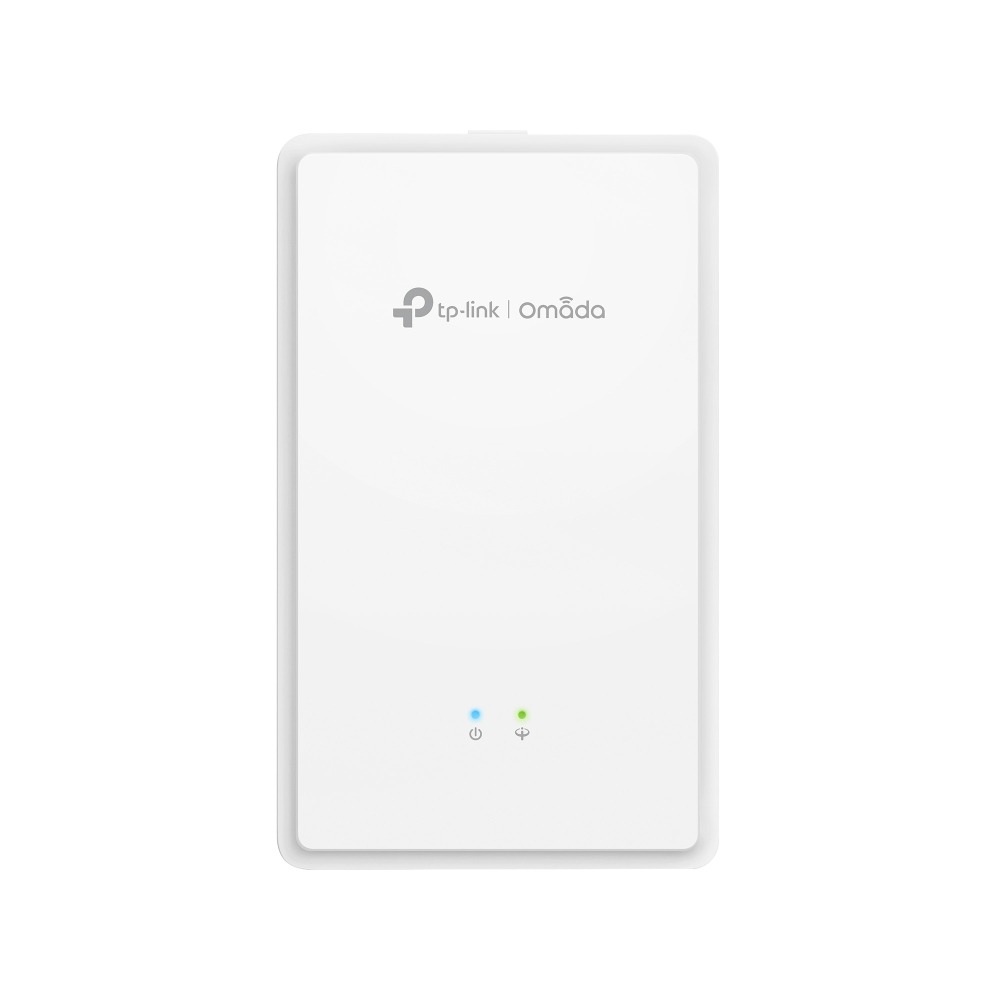

TP-LINK EAP625GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
  • รูปภาพ 5
ราคา:
สินค้าโปรเจค ทัก line id : @totalit เพื่อขอราคา
รหัสสินค้า:
EAP625GP-Wall
ยี่ห้อ:


คุณสมบัติของสินค้า

  • ความเร็ว WiFi 6 สูงสุด 1.8 Gbps อย่างไร้รอยต่อ: 1201 Mbps บนคลื่น 5 GHz และ 574 Mbps บนคลื่น 2.4 GHz
  • พอร์ตหลากหลาย: มาพร้อม 1× พอร์ต GPON สำหรับการเชื่อมต่อความเร็วสูงระยะไกล และ 2× พอร์ต Gigabit RJ45 (โดย 1 พอร์ตรองรับการจ่ายไฟผ่าน PoE มาตรฐาน 802.3af) เพื่อการติดตั้งที่ยืดหยุ่น
  • ไฟเบอร์เส้นเดียว รองรับหลายบริการ: รองรับบริการแบบมีสาย, ไร้สาย, โทรศัพท์, VoIP, ข้อมูล และวิดีโอความคมชัดสูง
  • รองรับการโทร VoIP: รองรับหลายบัญชี VoIP พร้อมฟีเจอร์การโทรที่หลากหลาย เหนือกว่าระบบโทรศัพท์พื้นฐานทั่วไป
  • ใช้งานง่าย: จับคู่ด้วยคลิกเดียว และสามารถเชื่อมต่ออัตโนมัติ
  • ฟังก์ชันขั้นสูง: รองรับ Omada Mesh, Roaming แบบไร้รอยต่อ และการจัดการผ่านคลาวด์แบบรวมศูนย์
HARDWARE FEATURES
Interface • 1x GPON Port
• 1x FXS Port
• 2x Gigabit RJ45 Ports (One supporting 802.3af PoE Out)
GPON Interface • Port Type: SC-APC
• Standards and Protocols: ITU-984.x, G.988, Class B+
• Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)
• Fiber Type: 9/125 um Single mode
• Max. Cable Length: 20 km
Button • Reset
• LED
Power Supply 100–240V~ 50/60Hz, 0.5A
Max. Power Consumption 30.5W (PoE out full load 15W)
Weight 350g
Dimensions ( W x D x H ) 5.6 × 3.4 × 1.8 in (143 × 86 × 44.6 mm)
Antenna Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 6.5 dBi
Mounting Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 50㎡(600ft²)**
Concurrent Clients 120+*
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: 1201 Mbps
• 2.4 GHz: 574 Mbps
Wireless Functions • 2×2 (2.4G & 5G) MU-MIMO
• HE80 (80 MHz Bandwidth)
• OFDMA
• Mesh§
• Seamless Roaming §
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• Guest Network
• Automatic Channel Assignment
• Beamforming
• Rate Limit
• Band Steering
• Load Balance
• Airtime Fairness
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule and Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<24 dBm(5 GHz, band3, EIRP)

• FCC:
<21 dBm (2.4 GHz)
<21 dBm (5 GHz)
Management Features
Omada App Yes
Centralized Management • Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog System Log
SSH Yes
Web-based Management Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS, IC
Package Content • EAP625GP-Wall
• Wall Mounting Kit
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
