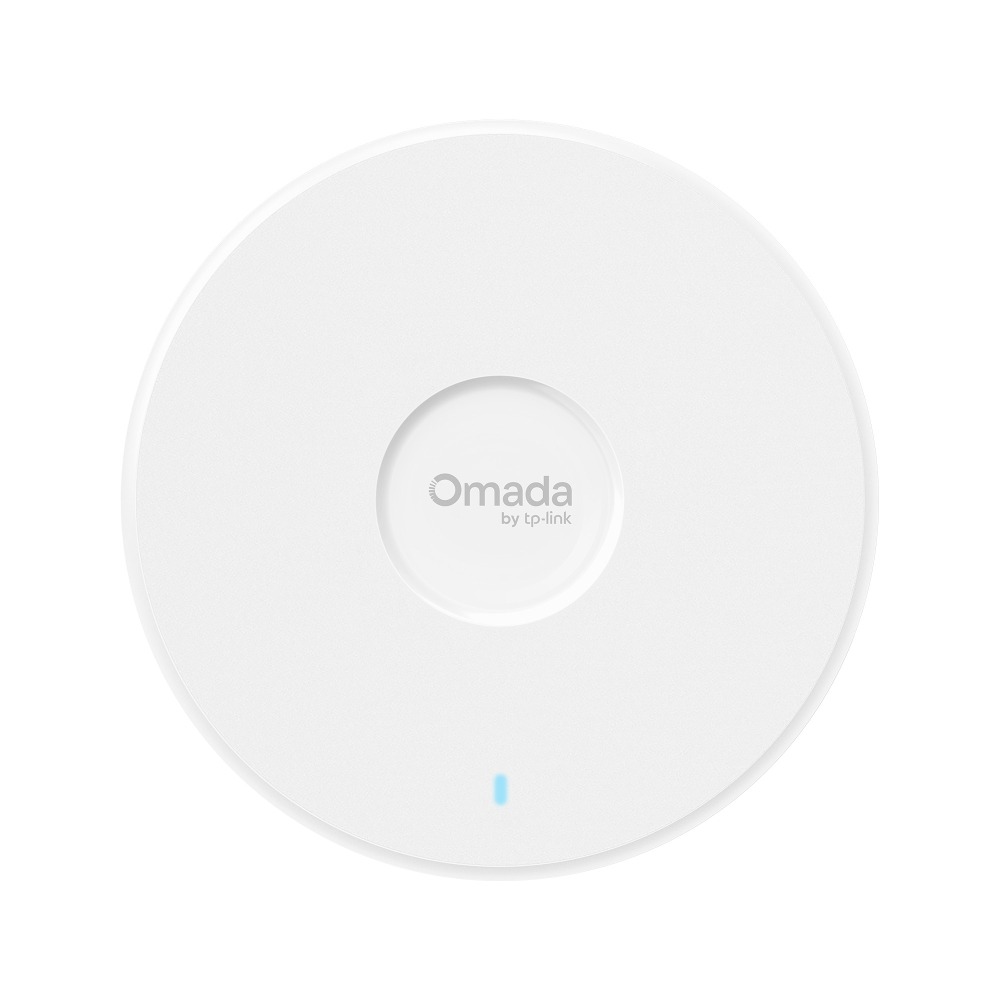

TP-Link EAP787 BE15000 Access Point มาตรฐาน Wi-Fi 7 Tri-Band ยกระดับเครือข่ายองค์กรของคุณด้วยความเร็วสูงสุด 15 Gbps, พอร์ต 10G, และเทคโนโลยีล่าสุด MLO, 4K-QAM, และ 320 MHz Bandwidth. รองรับ AFC เพิ่มระยะ 6 GHz จัดการง่ายผ่าน Omada SDN
| HARDWARE FEATURES | |
| Interface | 1× 10G/2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt/at PoE or 12V/2.5A DC |
| Max. Power Consumption | • 29 W (For PoE); • 24.5W (For DC) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 4× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 5 dBi (peak gain), Internal antenna module *Firmware update may be required. |
| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| WIRELESS FEATURES | |
| Coverage | 2050 ft² (190 m²)* |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions | • 320 MHz Bandwidth‡ • MLO‡ • 4K-QAM‡ • Multi-RUs‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO‡ • Mesh△ • BSS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Mac Filter • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 4-25 dBm (2.4 GHz) 7-29 dBm (5 GHz, U-NII-1 & U-NII-3) 7-26 dBm (5 GHz, U-NII-2A) 7-24 dBm (5 GHz, U-NII-2C) 4-23 dBm (6 GHz) |
| Management Features | |
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS, IC |
| Package Content | • EAP787 • Installation Guide • Ceiling/Wall/Junction Box Mounting Kit Note: Power Adapter is NOT included. |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
