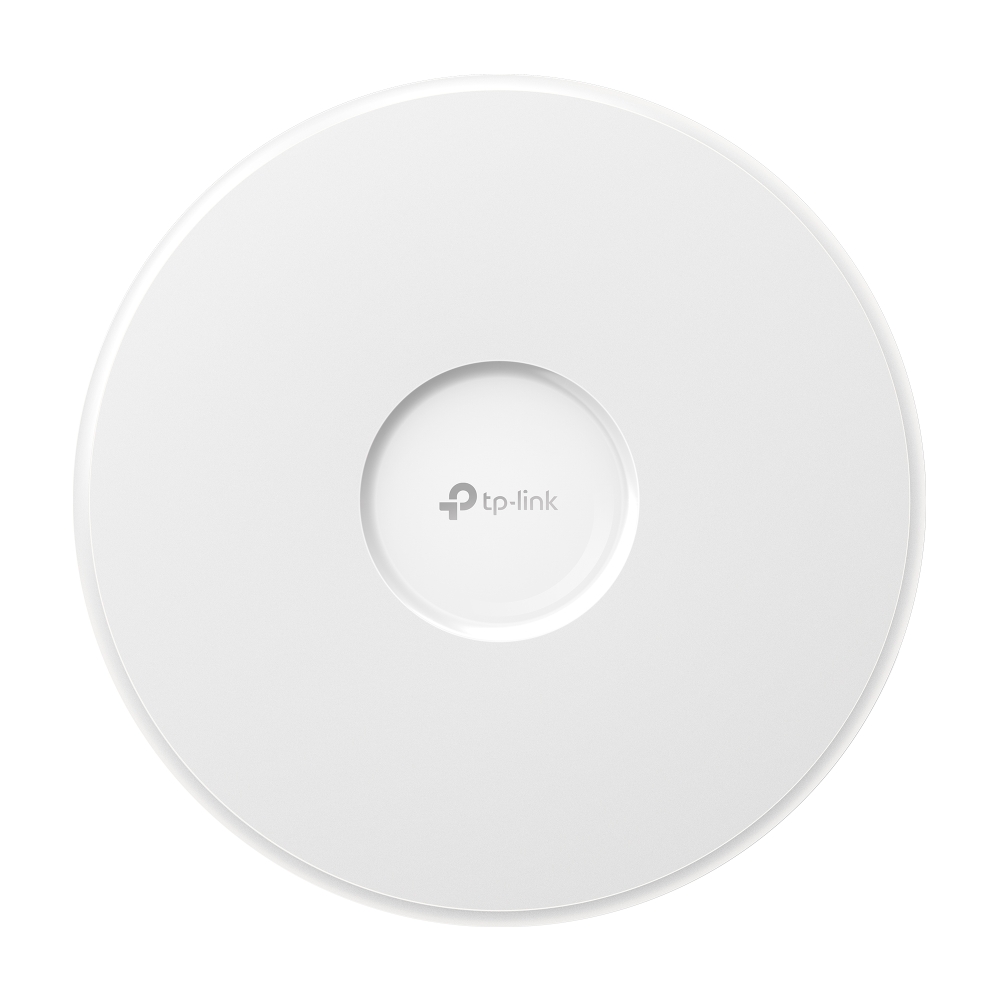

TP-LINK EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

ราคา:

สินค้าโปรเจค ทัก line id : @totalit เพื่อขอราคา

รหัสสินค้า:

EAP772

ยี่ห้อ:

TP-LINK

คุณสมบัติของสินค้า

BE9300 Tri-Band Wi-Fi 7 (5765 Mbps on 6 GHz + 2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
A clear 6 GHz band brings cleaner and wider band resources.
1× 2.5G Port unlocks the full potential of Wi-Fi 7.
320 MHz bandwidth enables many more simultaneous transmissions.
Multi-Link Operation and Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, mesh, and AI roaming.

HARDWARE FEATURES
Interface	1× 2.5G Ethernet Port
Button	Reset
Power Supply	802.3at PoE or 12V/2.5A DC
Power Consumption	• 24.05 W (For PoE); • 20.92 W (For DC)
Dimensions ( W x D x H )	8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type	• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi
Bluetooth	1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.
Mounting	Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage	140㎡(1500 ft²)^§
Wireless Client Capacity	380+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)^†
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO^‡ • EHT320^‡ • Mesh^△ • BSS Coloring^‡ • OFDMA^‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication^△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	< 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23dBm (6 GHz, EIRP)
MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes
OTHERS
Certification	CE, FCC, RoHS, IC
Package Contents	• EAP772 • Installation Guide • Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included.
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
