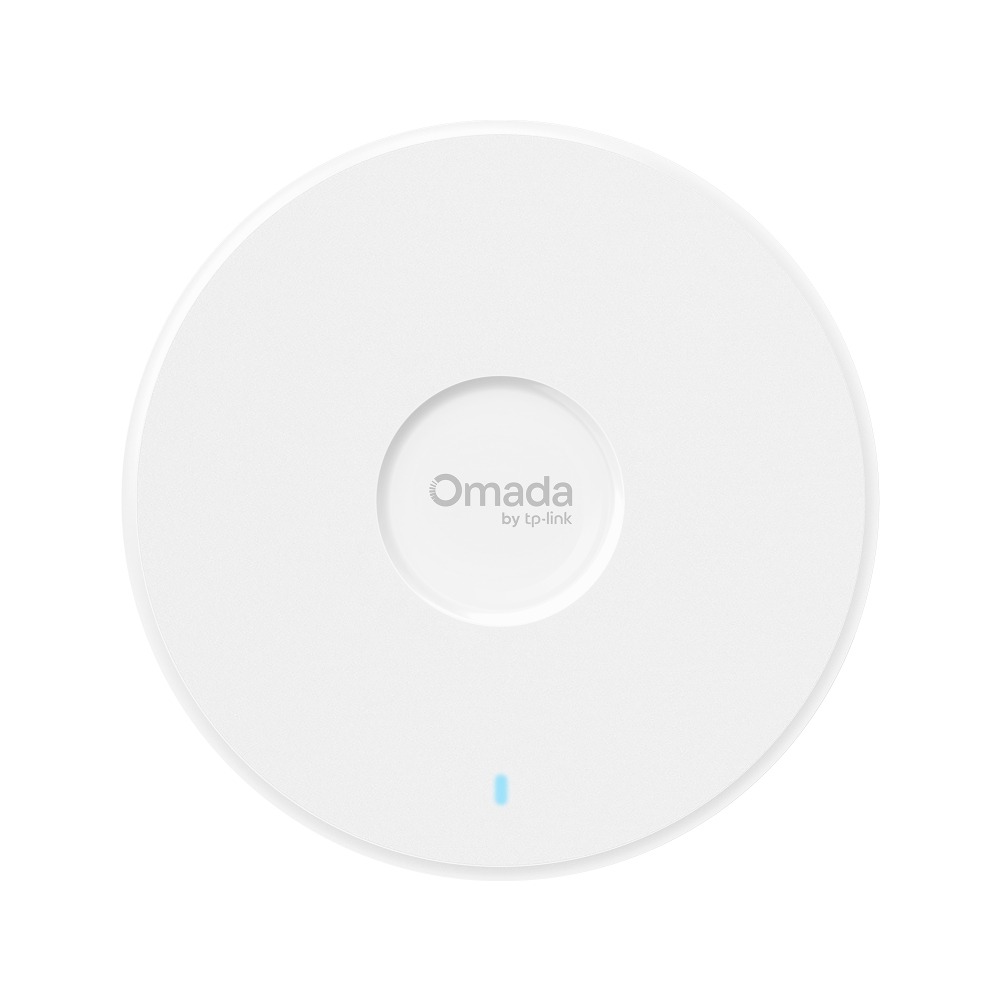

TP-LINK EAP770 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
ราคาเต็ม:
9,390.00฿
ราคารวม:
7,920.00฿ (คุณประหยัดเงิน 1,470.00฿)
รหัสสินค้า:
EAP770
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

  • BE9300 Tri-Band Wi-Fi 7: 5765 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz). การบัฟเฟอร์จะไม่เป็นปัญหาอีกต่อไป.
  • 1× 2.5G Port: ปลดล็อกศักยภาพเต็มรูปแบบของ Wi-Fi 7.
  • Clear 6 GHz Band: นำแบนด์ที่สะอาดและกว้างขึ้นมาสู่ Wi-Fi ของคุณ.
  • 320 MHz Bandwidth: ความกว้างแบนด์สูงสุด 320 MHz ช่วยให้ส่งข้อมูลพร้อมกันได้มากขึ้นด้วยความเร็วสูงสุด.
  • Low Latency and Interference: Multi-Link Operation และ Multi-RUs ช่วยรับประกันประสิทธิภาพสูงของเครือข่ายคุณ.
  • Advanced Functions:รองรับการจัดการแบบรวมศูนย์, Mesh และ Seamless Roaming.
HARDWARE FEATURES
Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/2.5A DC
Max. Power Consumption • 24.05 W (For PoE)
• 20.92 W (For DC)
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna • 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Mounting Ceiling / Wall /Junction Box Mounting (Kits Included)
WIRELESS FEATURES
Coverage 1500 ft² (140㎡)§
Concurrent Clients 380+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions • MLO
• 4K-QAM
• MU-MIMO
• 320 MHz Bandwidth
• Mesh
• Seamless Roaming(802.11k/v/r)
• BBS Coloring
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security • Captive Portal Authentication
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)
< 23dBm (6 GHz, EIRP)
Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of an Omada controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Content • Omada Ceiling Mount Accsee Point EAP770
• Installation Guide
• Power Adapter
• Ceiling/Wall/Junction Box Mounting Kits
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;

การรับประกัน

ประกันศูนย์ Limited Lifetime
