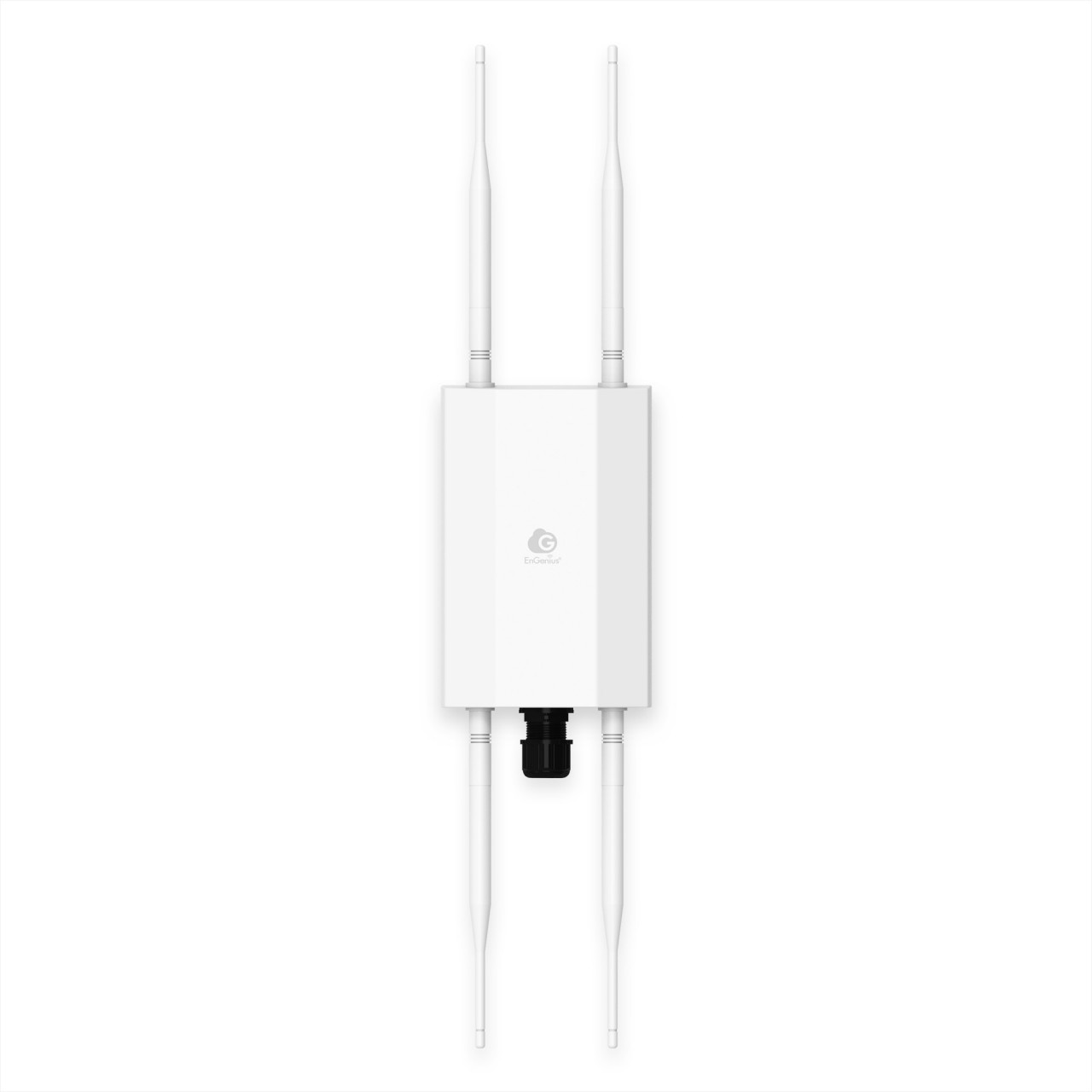

EnGenius ECW260 Cloud Managed Wi-Fi 6 2×2 Outdoor Access Point

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
  • รูปภาพ 5
ราคาเต็ม:
18,500.00฿
ราคารวม:
17,020.00฿ (คุณประหยัดเงิน 1,480.00฿)
รหัสสินค้า:
ECW260
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

EnGenius Cloud Managed ECW260 Outdoor Wi-Fi 6, 2x2, IP67, MU-MIMO Dual-Band Access Point reaches speeds of 1,200 Mbps on 5GHz and 574 Mbps on 2.4GHz band. This top-of-the-line cloud-managed AP features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed top-notch performance and reliability in the harshest environments.

  • Dual concurrent 802.11ax & backward-compatible with 11ac/a/b/g/n client devices
  • Supports up-to 1,200 Mbps in 5-GHz band & 574 Mbps in 2.4-GHz band
  • IP67-Rated weatherproof & dustproof housing withstands harsh environments
  • 2.5 GigE PoE+ compatible port for easy placement where power outlets are scarce
  • Four (4) (2x2) detachable 5dbi high-gain, 360° SMA-type antennas
  • Quick-scan device register & configuration and remote monitoring & troubleshooting
  • Cloud manage unlimited number of APs from anywhere with the EnGenius Cloud App
  • Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Technical Specifications

Standards
IEEE 802.11b/g/n/ax on 2.4GHz
IEEE802.11a/n/ac/ax on 5GHz

Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.8GHz

Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type

Physical Interface
1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3af/at
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption
15.9W

Surge Protection
1KV

ESD Protection
Contact: 4KV
Air: 8 KV



Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes
AP, Mesh

Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
2.4GHz: 23dBm
5GHz: 25dBm
Maximum power is limited by regulatory domain

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SUMIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4G Hz and 5GHz radio.

MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously

Two (2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax:
- 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
- 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)



Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK



Management

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3-PSK (SAE)
WPA3 Enterprise
WPA2 Enterprise (AES)
WPA2 AES-PSK
OWE
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation



Environmental & Physical

Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Waterproof & Dustproof
IP67-Rated Enclosure



Device Dimensions & Weights

ECW260 Device
Weight: 1.54 lbs. (0.7 kg)
Width: 4.07” (124 mm)
Length: 7.48” (190 mm)
Height: 2.07” (52.5 mm)

Packaging
Weight: 3.96 lbs. (1.8kg)
Width: 9.21" (234 mm)
Length: 11.18" (284 mm)
Height: 5.67" (144 mm)

Package Contents
1 – ECW260 Cloud Managed Outdoor Access Point
1 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
2 - 2.4GHz 5dBi SMA Antennas
2 - 5GHz 5dBi SMA Antennas
1 - Quick Installation Guide


การรับประกัน

ประกันศูนย์ไทย 3 ปี
