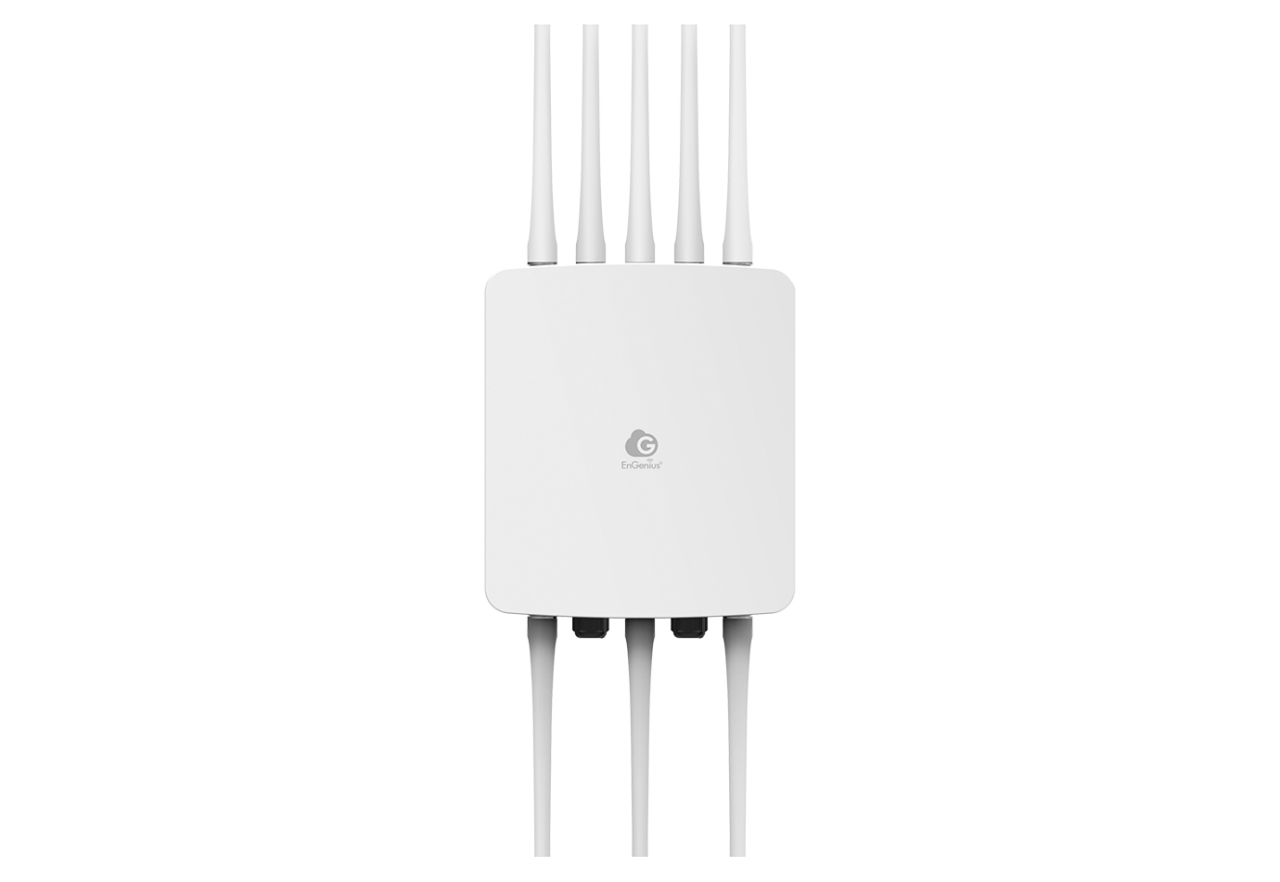

EnGenius ECW270 Cloud Managed Wi-Fi 6 4 x 4 Outdoor Access Point

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
ราคาเต็ม:
42,500.00฿
ราคารวม:
39,100.00฿ (คุณประหยัดเงิน 3,400.00฿)
รหัสสินค้า:
ECW270
ยี่ห้อ:
EnGenius
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า

ECW270 Wi-Fi 6, 4x4, IP68, MU-MIMO Cloud Managed Dual-Band Outdoor Wireless Access Point reaches speeds of 2,400 Mbps on 5 GHz and 1,200 Mbps on 2.4 GHz band. This top-of-the-line cloud-managed AP features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed top-notch performance and reliability in the harshest environments.

  • Dual concurrent 802.11ax & backward-compatible with 11ac/a/b/g/n client devices
  • Supports up to 2,400 Mbps in 5 GHz band & 1,200 Mbps in 2.4 GHz band
  • IP68-Rated weatherproof & dustproof housing withstands harsh environments
  • 1 x 2.5 Giga PoE++ compatible port realizes greater throughput and supports Power over Ethernet (802.3 at/bt) for flexible installation over 100 meters (328 feet)
  • 1 x Gigabit Port
  • Four detachable 5 dbi high-gain 2.4GHz antennas
  • Four detachable 7 dbi high-gain 5GHz antennas
  • Quick-scan device register & configuration and remote monitoring & troubleshooting
  • Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
  • Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Technical Specifications

Standards

IEEE 802.11ax on 2.4 GHz IEEE 802.11ax on 5 GHz Backward compatible with 802.11a/b/g/n/ac

Antenna

4 x 2.4 GHz: 5 dBi (External Omni-Directional) 4 x 5 GHz: 7 dBi (External Omni-Directional)

Physical Interface

1 x 10/100/1000 Ethernet Port 1 x 10/100/1000/2500 Ethernet Port (PoE++)

LED Indicators

1 x Power 1 x LAN1 1 x LAN2 1 x 2.4 GHz 1 x 5 GHz

Power Source

Power-over-Ethernet: 802.3 at/bt Input IEEE 802.11e Compliant Source Active Ethernet (PoE)

Maximum Power Consumption

46W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2483 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5875 MHz

Transmit Power

Up to 24 dBm on 2.4 GHz Up to 24 dBm on 5 GHz (Maximum power is limited by regulatory domain)

Radio Chains/Spatial Stream

4 × 4:4

SU-MIMO

Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.

MU-MIMO

Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):

802.11ax: 2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4) 5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 600 (MCS0 to MCS31) 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) 802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK

Max Concurrent User

511 Per radio

Management Features

Multiple BSSID

8 SSIDs for both 2.4 GHz and 5 GHz radios

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Complaint With IEEE 802.11e Standard WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK WPA2-Enterprise WPA3-PSK WPA3-Enterprise Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List Https SSH Tunnel Client Isolation

Environmental & Physical

Temperature Range

Operating: – -4 º~149 ºF/-20 ºC~65 ºC Storage: -40Fº~176ºF/-40ºC~80ºC

Humidity (non-condensing)

Operating: 90% or less Storage: 90% or less

IP Rating

IP68

Surge Protection

1KV

ESD Protection

Contact: 4KV Air: 8 KV

Dimensions & Weight

ECW270 Device

Weight: 1870g Width: 218 mm Length: 285 mm Height: 53 mm

Package Contents

1 – ECW270 Cloud Managed Outdoor Access Point 2 – Mounting Brackets 1 – Wall-Mount Screw Set 4 – 2.4GHz 5dBi Detachable Antennas 4 – 5GHz 5dBi Detachable Antennas 1 – Quick Installation Guide

การรับประกัน

ประกันศูนย์ไทย 1 ปี
